Lower Arm - Rear: Notes

NOTE: Wagon shown, 3/4/5 door similar.

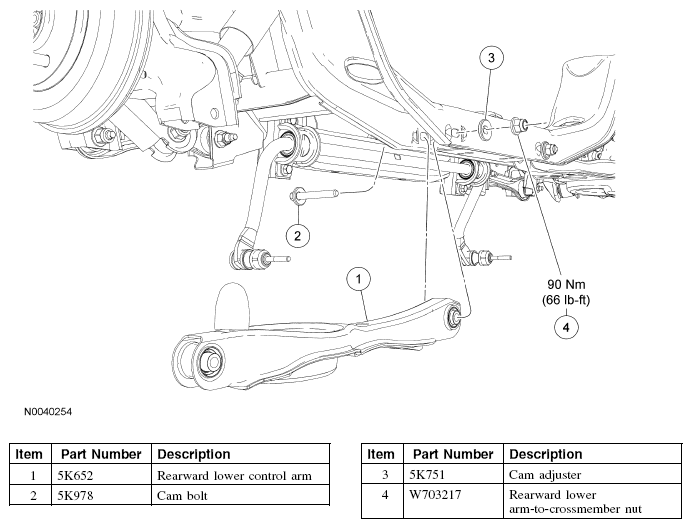

Fig 1: Lower Arm -- Rear Replacement Components With Torque Specifications

G04651492

Courtesy of FORD MOTOR CO.
