Wheel Bearing: Notes

SPECIAL TOOL(S)

G04651423Courtesy of FORD MOTOR CO.
 Installer, Drive Pinion Bearing Cup
205-140 (T80T-4000-F)
G04651424Courtesy of FORD MOTOR CO.
 Puller, Bearing
205-D064 (D84L-1123-A) or equivalent
G04651425Courtesy of FORD MOTOR CO.
 Installer, Wheel Hub Bearing Cup
204-023 (T73T-1217-A)
G04651426Courtesy of FORD MOTOR CO.
 Remover/Installer, BushingM
204-180 (T93P-5493-A)
G04651427Courtesy of FORD MOTOR CO.
 Adapter for 303-224 (Handle)
205-153 (T80T-4000-W)
G04651428Courtesy of FORD MOTOR CO.
 Installer, Wheel Speed Sensor Ring
206-054 (T93P-20202-A)

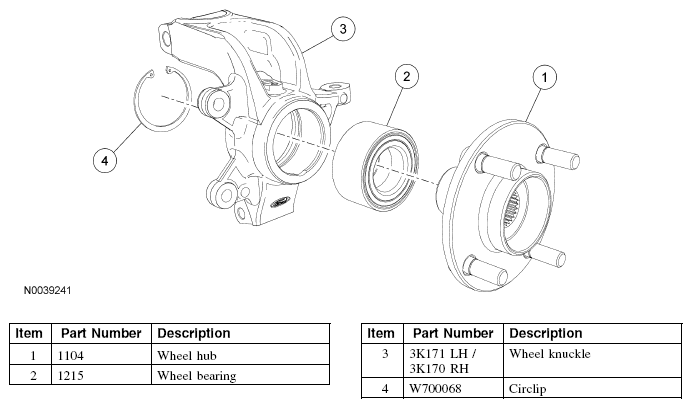

Fig 1: Identifying Wheel Bearing Assembly Components
G04651429Courtesy of FORD MOTOR CO.
