Lower Arm: Notes

SPECIAL TOOL(S)

G04651435Courtesy of FORD MOTOR CO.
 Adapter
307-102 (T81P-70363-A4) Part of 307-S098 (T81P-77000-A)

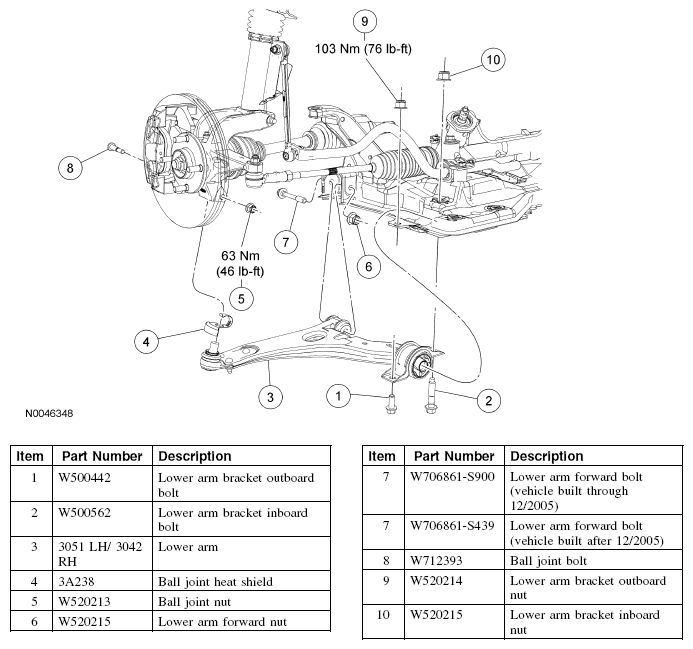

Fig 1: Lower Arm Replacement Components With Torque Specifications
G04651436Courtesy of FORD MOTOR CO.
