Home >> Ford >> 2006 >> Focus ZX5 SE, Standard >> Repair and Diagnosis >> Steering >> Steering Linkage >> Removal And Installation >> Tie Rod - Outer >> Notes

Tie Rod - Outer: Notes

SPECIAL TOOL(S)

G04651765

Remover, Tie-Rod End
211-001 (Tool-3290-D)

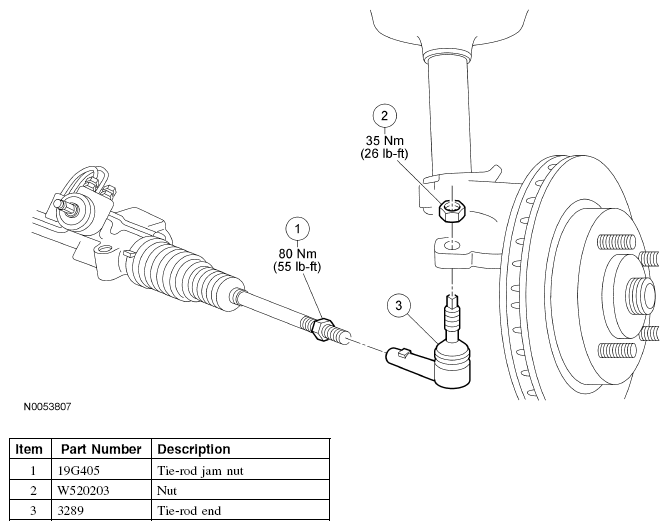

Fig 1: Identifying Tie Rod - Outer Components

G04651766

Courtesy of FORD MOTOR CO.
