Safety Belt Buckle - Rear: Notes

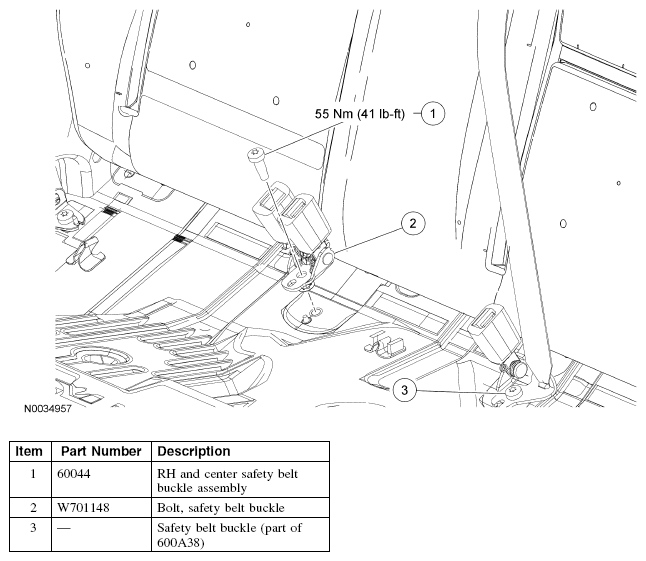

Fig 1: Rear Safety Belt Buckle With Torque Specifications

G04654790

Courtesy of FORD MOTOR CO.
