Side Impact Sensor: Notes

NOTE: Carpet removed for clarity.

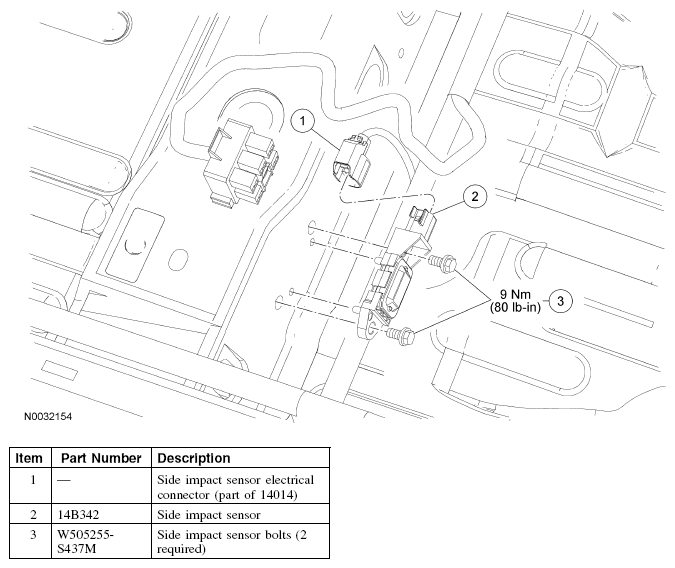

Fig 1: Side Impact Sensor Remove\Install Replacement Components With Torque Specifications
G04655109Courtesy of FORD MOTOR CO.
