Side Air Bag Module: Notes

NOTE: Driver side air bag module shown, passenger similar.

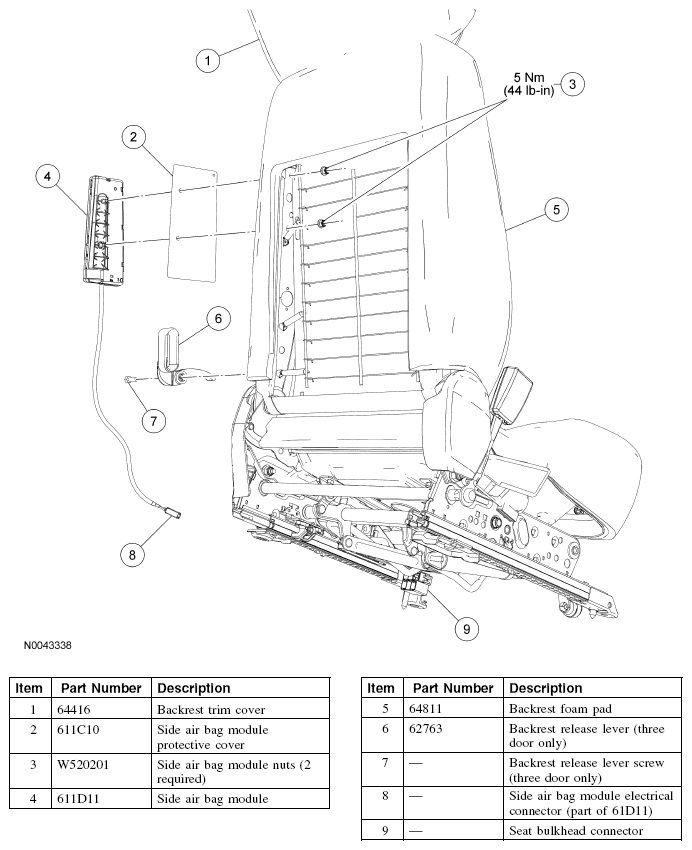

Fig 1: Side Air Bag Module Remove\Install Replacement Components With Torque Specifications
G04655092Courtesy of FORD MOTOR CO.
