Restraints Control Module (RCM): Removal

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: The restraints control module (RCM) orientation is critical for correct air bag supplemental restraint system (SRS) operation. If a vehicle equipped with an SRS system has been involved in a collision in which the center tunnel area has been damaged, inspect the mounting and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags have deployed. In addition, make sure the area of the RCM is restored to its original condition.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to the diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE COMMUNICATIONS NETWORK .
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
  1. Depower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING  in the General Procedures portion of this article.
  2. Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  3. Disconnect the large RCM electrical connector.
    1. Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
    2. Pull out and disconnect the large RCM electrical connector.

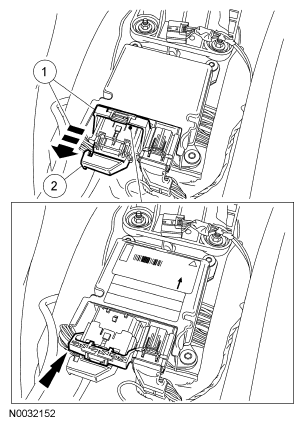

      Fig 1: Disconnecting Large RCM Electrical Connector
      G04655088Courtesy of FORD MOTOR CO.
  4. Disconnect the small RCM electrical connector.
  5. Remove the 3 bolts and the RCM.
