Passenger Air Bag Deactivation (PAD) Indicator: Notes

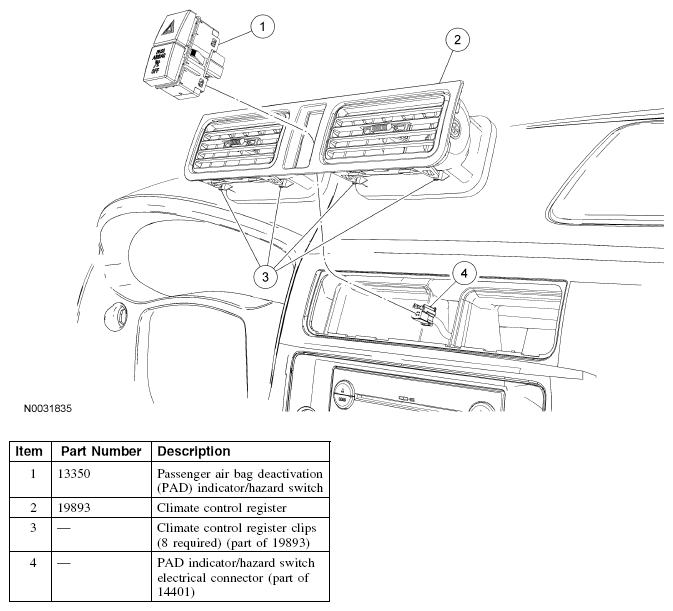

Fig 1: Identifying Passenger Air Bag Deactivation (PAD) Indicator Remove\Install Components

G04655072

Courtesy of FORD MOTOR CO.
