Home >> Ford >> 2006 >> Focus ZX5 SE, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Removal And Installation >> Front Impact Severity Sensor >> Notes

Front Impact Severity Sensor: Notes

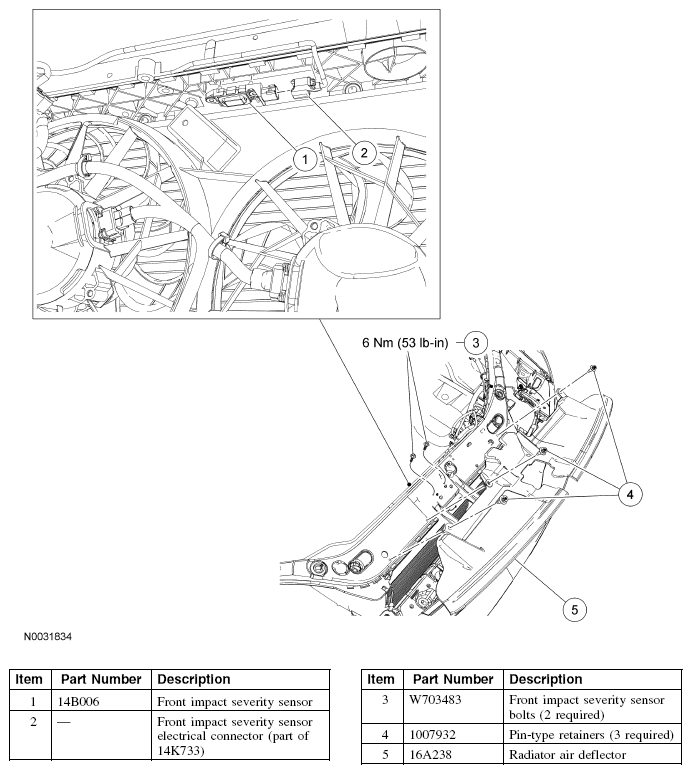

Fig 1: Front Impact Severity Sensor Remove\Install Replacement Components With Torque Specifications

G04655049

Courtesy of FORD MOTOR CO.
