Driver Air Bag Module: Notes

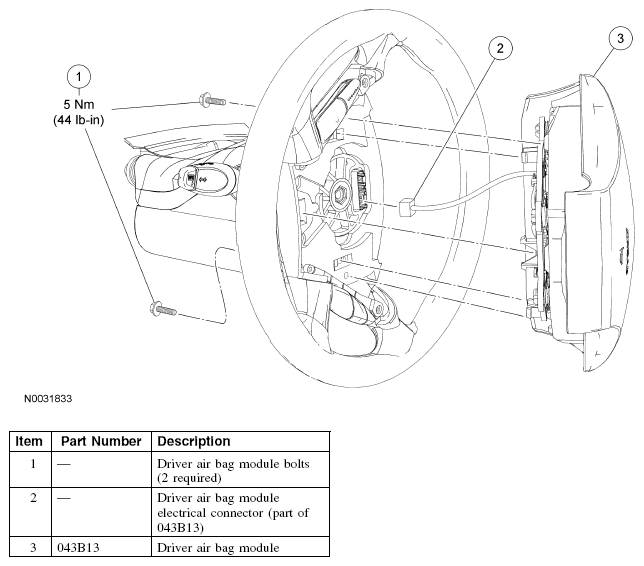

Fig 1: Driver Air Bag Module Remove\Install Replacement Components With Torque Specifications

G04655048

Courtesy of FORD MOTOR CO.
