Supplemental Restraint System (SRS) Deactivation and Reactivation: Reactivation

All vehicles

Remove the restraints control module fuse 60 (7.5A) from the central junction box (CJB).
Disconnect the battery ground cable and wait at least one minute. For additional information, refer to BATTERY MOUNTING AND CABLES .

Vehicles with seat side air bags

Remove the restraint system diagnostic tool from the vehicle harness side of the driver seat side air bag module electrical connector.

Fig 1: Connecting Restraint System Diagnostic Tool (501-109) To Vehicle Harness Side
Courtesy of FORD MOTOR CO.
Connect the driver seat electrical connector.

Fig 2: Locating Driver Seat Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the restraint system diagnostic tool from the vehicle harness side of the passenger seat side air bag module electrical connector.

Fig 3: Connecting Restraint System Diagnostic Tool (501-109) To Vehicle Harness Side
Courtesy of FORD MOTOR CO.
Connect the passenger seat electrical connector.

Fig 4: Locating Passenger Seat Electrical Connector
Courtesy of FORD MOTOR CO.

All vehicles

Loosen the passenger air bag module floating bracket retaining nuts.

Fig 5: Locating Passenger Air Bag Module Floating Bracket Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the restraint system diagnostic tools from the vehicle harness side of the passenger air bag module electrical connectors.

Fig 6: Identifying Restraint System Diagnostic Tools (418-F395)
Courtesy of FORD MOTOR CO.
Install the passenger air bag module.
- Connect the passenger air bag module electrical connectors.

  Fig 7: Locating Passenger Air Bag Module Electrical Connectors
  Courtesy of FORD MOTOR CO.
Install the passenger air bag module and reinforcement bracket to the instrument panel and install the bolts.
- Tighten to 11 Nm (8 lb-ft).

  Fig 8: Locating Reinforcement Bracket Bolts
  Courtesy of FORD MOTOR CO.
NOTE: Feed the trim cover brackets down through the passenger air bag module and floating bracket.
Install the passenger air bag module trim cover.

Fig 9: Installing Passenger Air Bag Module Trim Cover
Courtesy of FORD MOTOR CO.

NOTE: Do not fully tighten the passenger air bag module trim cover bolts at this time.
Install the passenger air bag module trim cover retaining bolts.

Fig 10: Locating Passenger Air Bag Module Trim Cover Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that all the passenger air bag module trim cover retaining clips are correctly engaged and that the trim cover is flush with the instrument panel.
Tighten the passenger air bag module floating bracket retaining bolts.
- Tighten to 11 Nm (8 lb-ft).

  Fig 11: Locating Passenger Air Bag Module Bracket Retaining Bolts
  Courtesy of FORD MOTOR CO.
Tighten the passenger air bag module trim cover retaining bolts.
- Tighten to 11 Nm (8 lb-ft).

  Fig 12: Locating Passenger Air Bag Module Trim Cover Bolts
  Courtesy of FORD MOTOR CO.
Attach the defroster pipe to the heater housing and defroster vent.

Fig 13: Locating Defroster Pipe
Courtesy of FORD MOTOR CO.
Install the ventilation pipe.
- Attach the retaining clip.

  Fig 14: Locating Ventilation Pipe
  Courtesy of FORD MOTOR CO.
Close the glove compartment door.

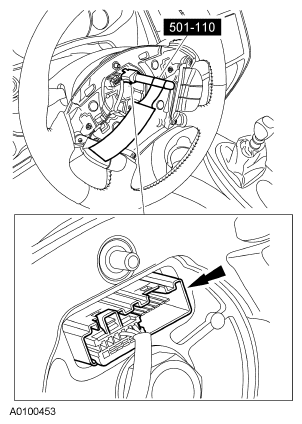

Remove the restraint system diagnostic tool from the driver air bag module electrical connector at the clockspring.

Fig 15: Identifying Restraint System Diagnostic Tool (501-110)
Courtesy of FORD MOTOR CO.
Install the driver air bag module.
- Connect the driver air bag module electrical connector.

  Fig 16: Locating Driver Air Bag Module Electrical Connector
  Courtesy of FORD MOTOR CO.

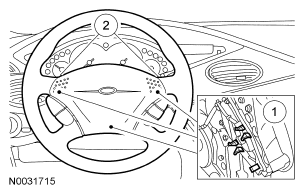

Install the driver air bag module to the steering wheel.
1. Attach the driver air bag module retaining clips.
2. Install the driver air bag module bolts.
  - Tighten to 5 Nm (44 lb-in).

    Fig 17: Identifying Driver Air Bag Module Bolts
    Courtesy of FORD MOTOR CO.
WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
Make sure all restraint system diagnostic tool(s) that may have been installed during the repair have been removed from the vehicle and all SRS components are connected.
Turn the ignition switch from OFF to ON.
Install the RCM fuse 60 (7.5A) to the CJB and install the cover.
WARNING: Be sure that nobody is in the vehicle and that there is nothing blocking or set in front of any air bag module when the battery ground cable is connected.
Connect the battery ground cable.
Prove out the supplemental restraint system (SRS) as follows:
Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag indicator with the air bag modules installed. The air bag indicator will light continuously for approximately 6 seconds and then turn off. If an air bag supplemental restraint system (SRS) fault is present, the air bag indicator will:
- fail to light.
- remain lit continuously.
- flash at a 5 Hz rate (RCM not configured).
The air bag indicator may not illuminate until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the restraints control module (RCM) to complete the testing of the SRS. If the air bag indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag indicator and any SRS fault discovered must be diagnosed and repaired.

Clear all continuous DTCs from the restraints control module using a diagnostic tool.
