Suction Accumulator: Notes

MATERIAL SPECIFICATIONS

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D WSH-M1C231-B

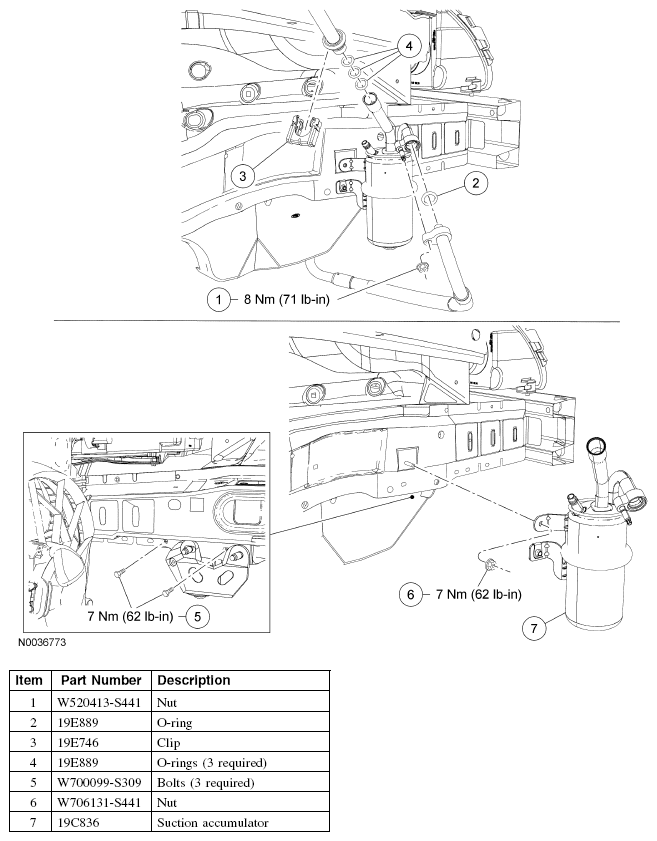

Fig 1: Suction Accumulator With Torque Specifications
G04653901Courtesy of FORD MOTOR CO.
