Air Conditioning (A/C) Compressor: Notes

MATERIAL SPECIFICATIONS

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D WSH-M1C231-B

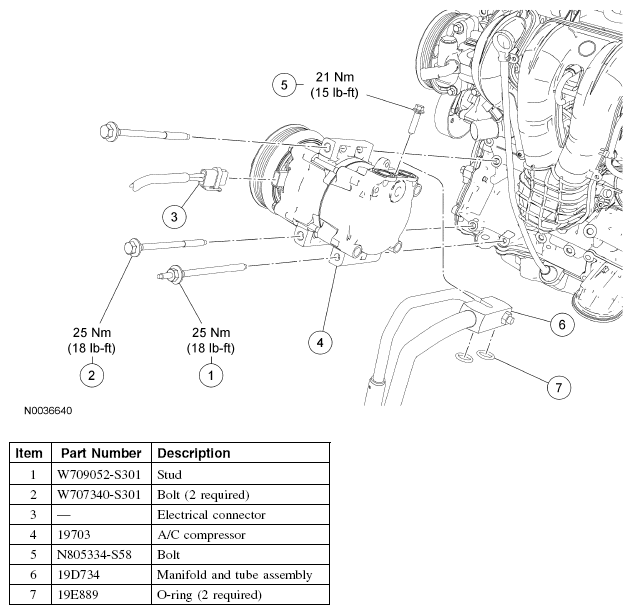

Fig 1: Air Conditioning Compressor Replacement Components With Torque Specifications
G04653780Courtesy of FORD MOTOR CO.
