Transmission Fluid Cooler Tubes - 2.0L: Installation

WARNING: This page is about a different variant/trim than selected.

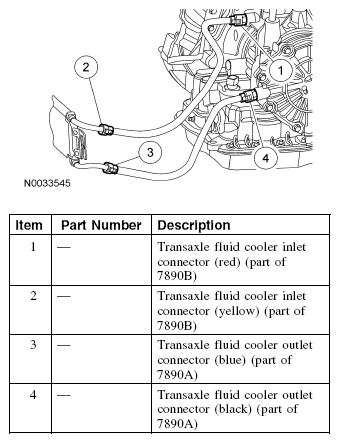

Fig 1: Identifying Transaxle Fluid Cooler Tubes Installation Position

Courtesy of FORD MOTOR CO.

NOTE: New cooler tubes come with a disposable clip to aid in installation.

Connect the transaxle fluid cooler tubes.
1. Connect the transaxle fluid cooler inlet tube.
2. Connect the transaxle fluid cooler outlet tube.
  - Pull back on each connector to confirm that it is locked on the cooler line.

    Fig 2: Identifying Transaxle Fluid Cooler Tubes
    Courtesy of FORD MOTOR CO.
Once the quick disconnect fitting is locked into place, remove and discard the disposable service clip.

Fig 3: Locating Service Clip
Courtesy of FORD MOTOR CO.
Install the transaxle fluid cooler tubes to the transaxle.
- Pull back on each connector to confirm that it is locked on the transaxle.

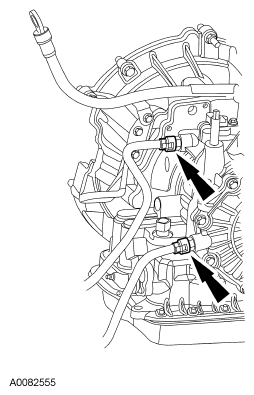

  Fig 4: Locating Transaxle Fluid Cooler Tubes Connectors
  Courtesy of FORD MOTOR CO.
Check the automatic transmission fluid and fill if necessary.
