Transmission Fluid Cooler - 2.0L: Removal

WARNING: This page is about a different variant/trim than selected.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .

    2. Vehicles with air conditioning

  2. Using a cable tie, secure the radiator to the radiator support.
    Fig 1: Locating Radiator Support
    G04653167Courtesy of FORD MOTOR CO.

    3. All vehicles

  3. Remove the radiator splash shield.
    Fig 2: Locating Radiator Splash Shield
    G04653168Courtesy of FORD MOTOR CO.
  4. Disconnect the horn electrical connector.
    Fig 3: Locating Horn Electrical Connector
    G04653169Courtesy of FORD MOTOR CO.

    5. Vehicles with air conditioning

  5. Unclip the air conditioning compressor clutch cable, then remove the radiator bracket.

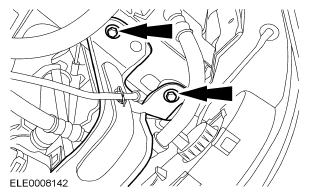

    Fig 4: Locating Radiator Bracket
    G04653170Courtesy of FORD MOTOR CO.

    6. All vehicles

    NOTE: Take notice of retaining ring color for correct orientation at installation.
  6. Disconnect the transmission fluid cooler tubes.
    1. Push the connector fitting into the cooler line.
    2. Press the tab release button.
    3. Pull the connector fitting off the cooler line.
      Fig 5: Pressing Tab Release Button
      G04653171Courtesy of FORD MOTOR CO.

    7. Vehicles with air conditioning

  7. Remove the air conditioning condenser from the bracket and position it aside.

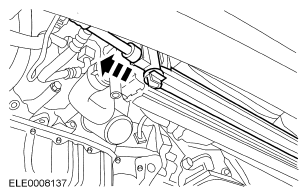

    Fig 6: Removing Air Conditioning Condenser
    G04653172Courtesy of FORD MOTOR CO.

    8. All vehicles

  8. Remove the RH and LH transmission fluid cooler from the brackets.
    Fig 7: Removing RH And LH Transmission Fluid Cooler
    G04653173Courtesy of FORD MOTOR CO.
