Transmission Fluid Cooler - 2.0L: Installation

WARNING: This page is about a different variant/trim than selected.

All vehicles

Install the RH and LH transmission fluid cooler into the brackets.

Fig 1: Installing RH And LH Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.

Vehicles with air conditioning

Install the air conditioning condenser.

Fig 2: Installing Air Conditioning Condenser
Courtesy of FORD MOTOR CO.
Install the radiator bracket, then attach the air conditioning compressor clutch cable.

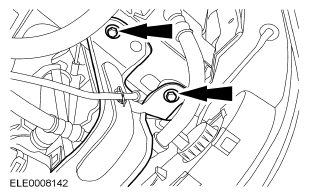

Fig 3: Locating Radiator Bracket And Bolts
Courtesy of FORD MOTOR CO.

All vehicles

NOTE: New cooler tubes come with a disposable clip to aid in installation.

Connect the transaxle fluid cooler tubes.
- Pull back on the connectors to confirm that they are locked on the cooler lines.

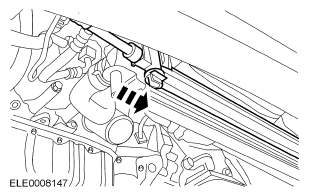

  Fig 4: Locating Transaxle Fluid Cooler Tubes Connectors
  Courtesy of FORD MOTOR CO.
Once the quick disconnect fitting is locked into place, remove and discard the disposable service clip.

Fig 5: Locating Service Clip
Courtesy of FORD MOTOR CO.
Connect the horn electrical connector.

Fig 6: Locating Horn Electrical Connector
Courtesy of FORD MOTOR CO.
Install the radiator splash shield.

Fig 7: Locating Radiator Splash Shield
Courtesy of FORD MOTOR CO.
Remove the cable ties from the radiator.

Fig 8: Locating Cable Ties
Courtesy of FORD MOTOR CO.
Check the automatic transmission fluid level and fill if necessary.
