Transaxle Cooling

WARNING: This page is about a different variant/trim than selected.

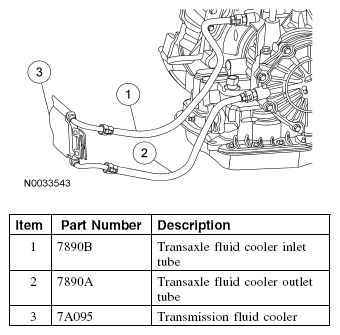

Fig 1: Identifying Transaxle Cooling Components (2.0L)

Courtesy of FORD MOTOR CO.

CAUTION: The connections on the automatic transmission fluid cooler are sealed with O-ring seals.

The transmission fluid cooler is installed in front of the engine cooling radiator.

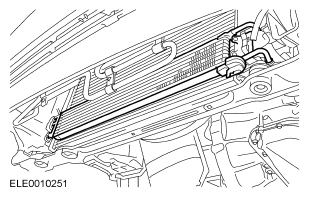

Fig 2: Locating Transmission Fluid Cooler

Courtesy of FORD MOTOR CO.
