Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery tray. For additional information, refer to BATTERY MOUNTING AND CABLES .
Remove the air cleaner assembly.
1. Disconnect the crankcase ventilation hose.
2. Disconnect the air cleaner outlet hose.
3. Remove the bolts and pull out the air cleaner resonator.

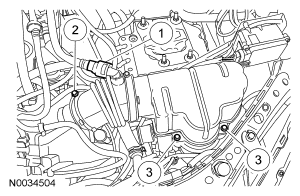

  Fig 1: Identifying Air Cleaner Assembly
  Courtesy of FORD MOTOR CO.
NOTE: The resonator is plugged into the bracket.
Remove the air cleaner intake hose with the resonator.

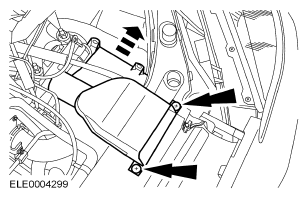

Fig 2: Locating Air Cleaner Intake Hose With Resonator
Courtesy of FORD MOTOR CO.
Disconnect the turbine shaft speed (TSS) sensor electrical connector.

Fig 3: Locating Turbine Shaft Speed (TSS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the TSS sensor bolt and sensor.
- Check the TSS sensor bore.

  Fig 4: Locating TSS Sensor Bolt
  Courtesy of FORD MOTOR CO.
Inspect the O-ring seal for nicks or cuts; install a new O-ring if necessary.

Fig 5: Locating O-Ring Seal
Courtesy of FORD MOTOR CO.
