Turbine Shaft Speed (TSS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Apply a light coat of clean automatic transmission fluid to the O-ring seal before installation.

Fig 1: Locating O-Ring Seal
Courtesy of FORD MOTOR CO.

CAUTION: Apply thread sealer to the bolt.
Install the TSS sensor and bolt.
- Tighten to 10 Nm (89 lb-in).

  Fig 2: Locating TSS Sensor And Bolt
  Courtesy of FORD MOTOR CO.
Connect the TSS sensor electrical connector.

Fig 3: Locating TSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: The resonator is plugged into the bracket.
Instal the air cleaner intake hose with the resonator.

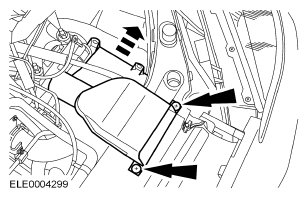

Fig 4: Locating Air Cleaner Intake Hose With Resonator
Courtesy of FORD MOTOR CO.
Install the air cleaner assembly.
1. Connect the crankcase ventilation hose.
2. Connect the air cleaner outlet hose.
3. Position the air cleaner into the resonator and install the bolts.

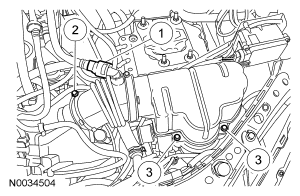

  Fig 5: Identifying Air Cleaner Assembly
  Courtesy of FORD MOTOR CO.
Install the battery tray. For additional information, refer to BATTERY MOUNTING AND CABLES .
