Transaxle Connector Layouts

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Transaxle Solenoid Connector

Courtesy of FORD MOTOR CO.

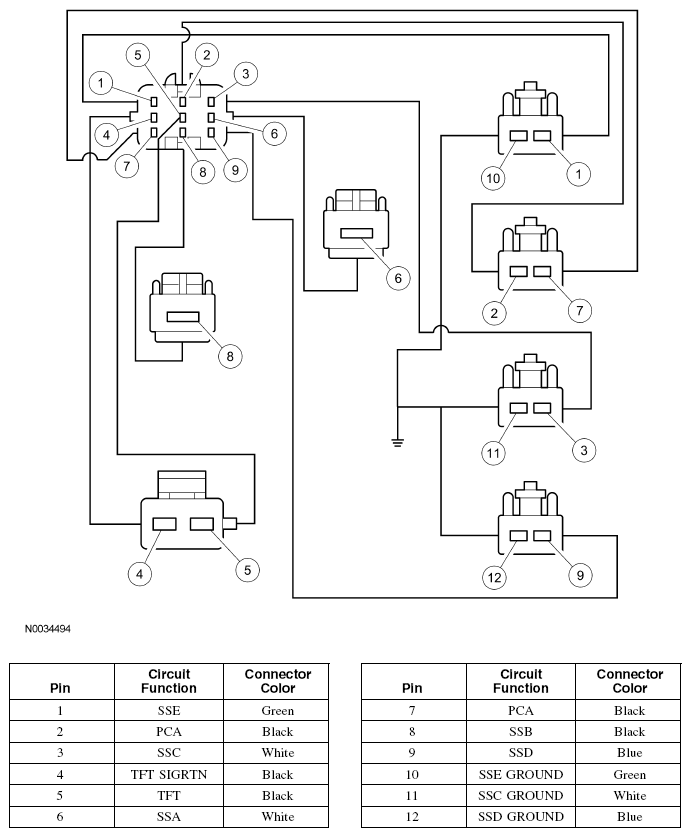

Fig 2: Transaxle Internal Harness Connectors - Wiring Diagram

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Transaxle Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Transmission Range (TR) Sensor Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Output Shaft Speed Sensor (OSS) Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Turbine Shaft Connector Speed (TSS) Sensor Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART

Selector Position	TR Sensor Pins Component Side	Expected Value
PARK	1 and 2, 3 and 4	Less than 5 ohms
REVERSE	3 and 5	Less than 5 ohms
NEUTRAL	1 and 2, 3 and 6	Less than 5 ohms
DRIVE	3 and 7	Less than 5 ohms
2	3 and 8	Less than 5 ohms
1	3 and 9	Less than 5 ohms

TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS PID CHART

Selector Lever Position	PID: TR	TR_4	TR_3	TR_2	TR_1
PARK or NEUTRAL	P/N	0	0	0	0
REVERSE	REV	1	0	0	0
DRIVE	O/D	0	1	0	0
Manual 2	Man 2	0	0	1	0
Manual 1	Man 1	0	0	0	1
