Internal Shift Mechanism
WARNING: This page is about a different variant/trim than selected.

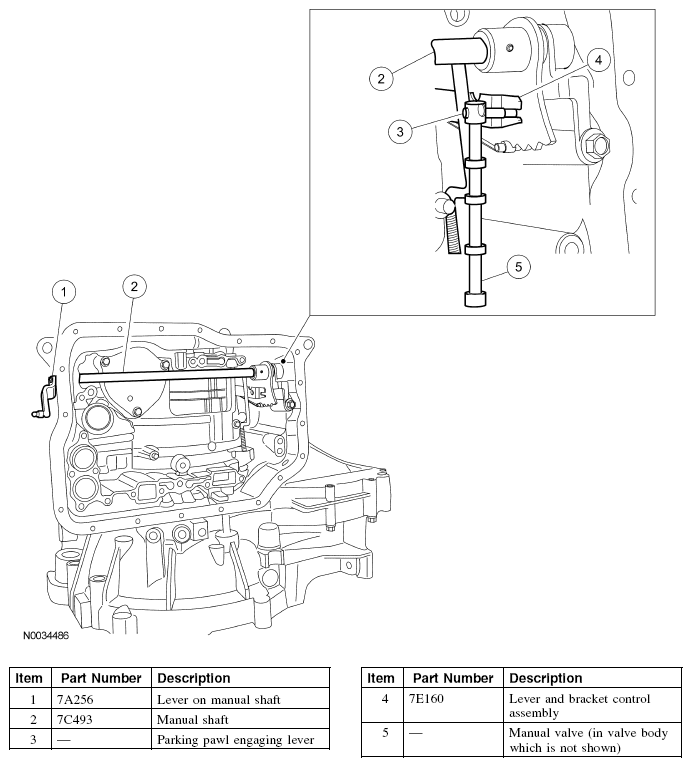

The shift lever is secured on a square on the manual shaft. Axial movement of the selector lever cable is changed into rotation of the manual shaft.
In the transmission, the manual shaft operates the parking pawl engaging lever and the actuating lever of the manual valve.
The manual valve, a valve operated entirely manually, is moved by means of the manual valve actuating lever in the valve body.
The manual valve guarantees the functions during hydraulic emergency operation.
