Section 1 (Automatic Transmission)
>>
Description And Operation
>>
Seals, Rings and Gasket Locator
Seals, Rings and Gasket Locator
WARNING:
This page is about a different variant/trim than selected.

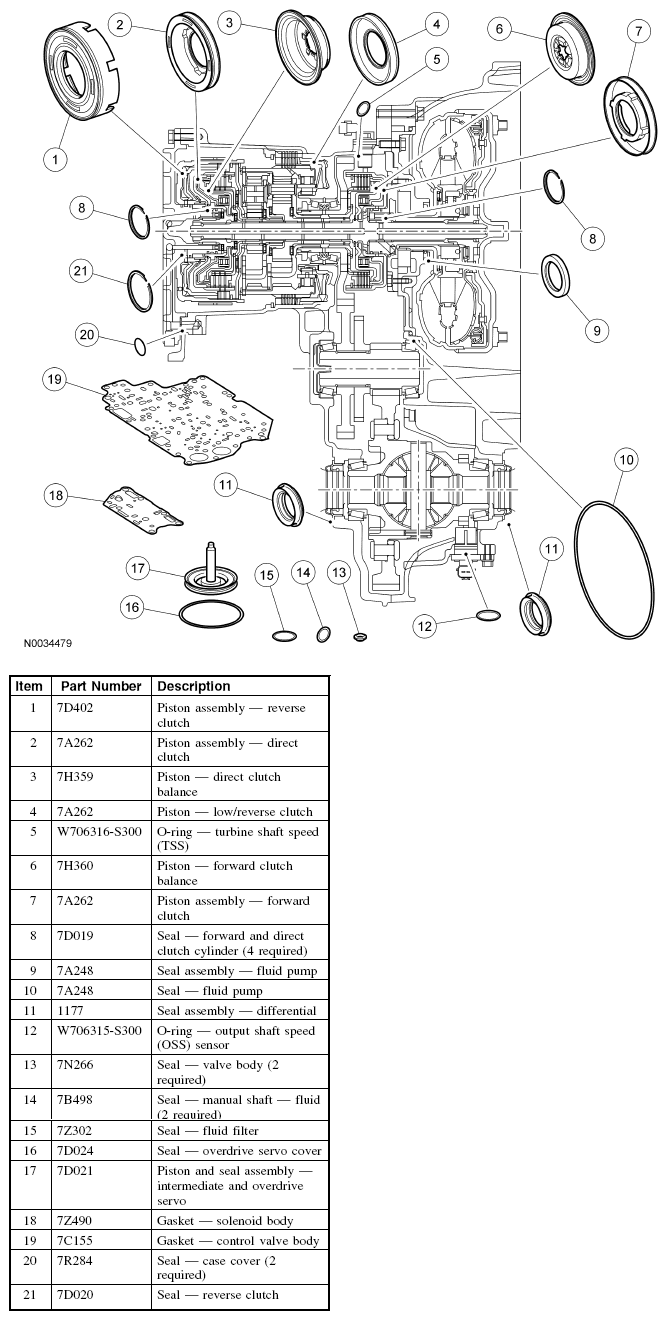

Fig 1: Identifying Seals, Rings And Gasket Locator Components
Courtesy of FORD MOTOR CO.
