Hydraulic System: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
The hydraulic system uses transmission fluid to cool, lubricate and provide hydraulic pressure to the hydraulic circuits within the transaxle.

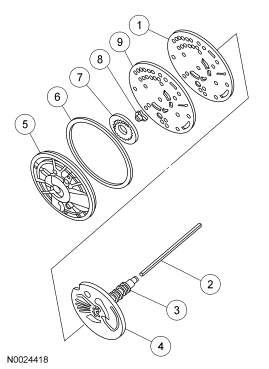

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G331 | Gasket - pump body separator |
| 2 | 7B328 | Shaft - pump drive |
| 3 | 7H114 | Seal - pump support (6 required) |
| 4 | 7A103 | Support assembly - pump |
| 5 | 7F370 | Body - pump assembly |
| 6 | 7A248 | Seal - pump |
| 7 | - | Gears - pump (part of 7A103) |
| 8 | 7F402 | Insert - pump drive gear |
| 9 | 7A142 | Plate - pump body separator |
