Motor Electronics Pump
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

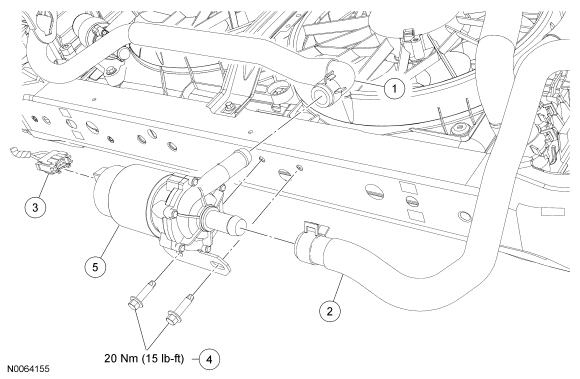

| Item | Part Number | Description |
|---|---|---|
| 1 | 15179-B | Motor electronics (M/E) coolant pump outlet hose |
| 2 | 8A567-B | M/E coolant pump inlet hose |
| 3 | 14A464 | M/E coolant pump electrical connector |
| 4 | 8005-B | M/E coolant pump bolts |
| 5 | 8C419-A | M/E coolant pump |
- Drain the motor electronics cooling system (MECS). For additional information, refer to Motor Electronics Cooling System Draining and Filling .
- Disconnect the inlet and outlet hoses.
- Disconnect the harness connector.
- Remove the bolts.
- To install, tighten to 20 Nm (15 lb-ft).
- To install, reverse the removal procedure.
