Selector Lever: Installation

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Install the selector lever assembly.
1. Install the selector lever and the 4 bolts.
  - Tighten to 25 Nm (18 lb-ft).
2. Connect the electrical connector.

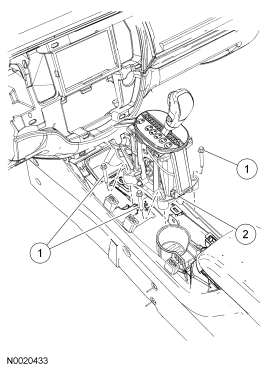

Fig 1: Selector Lever Assembly Electrical Connector & Bolts

Courtesy of FORD MOTOR CO.

Install the selector lever cable to the selector lever assembly.
1. Connect the selector lever cable end to the selector lever.
2. Install the selector lever cable to the bracket.

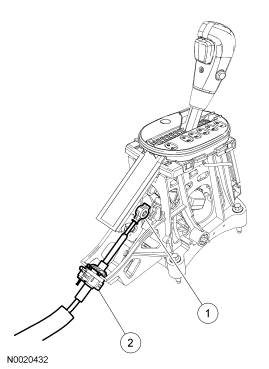

Fig 2: Selector Lever Cable At Gearshift Assembly

Courtesy of FORD MOTOR CO.

NOTE: If necessary, connect the electrical connector.

NOTE: If the parking brake was applied to remove the finish panel, release the parking brake.

Install the top finish panel.

Fig 3: Locating Top Finish Panel

Courtesy of FORD MOTOR CO.

Install the upper shift lever trim ring.
- To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.

Fig 4: Upper Shift Lever Trim Ring (Thick Tab On Driver Side)

Courtesy of FORD MOTOR CO.

Adjust the shift cable. For additional information, refer to Selector Lever Cable Adjustment .
