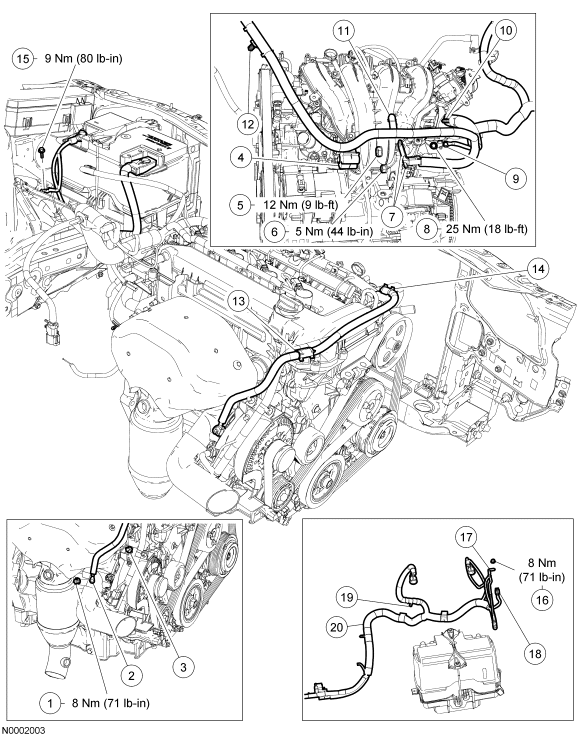

Battery Cables - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705790-S | Generator B+ terminal nut |
| 2 | - | Generator B+ terminal (part of 14A280) |
| 3 | 13A506 | Generator harness retainer |
| 4 | 14488 | Starter solenoid terminal cover |
| 5 | W701596-S | Starter motor positive cable nut |
| 6 | W704141-S | Starter solenoid wire nut |
| 7 | - | Starter motor terminals (part of 14A280) |
| 8 | N802001-S437 | Battery ground cable bolt |
| 9 | - | Battery ground cable terminal (part of 14A280) |
| 10 | 13A506 | Pin-type retainer |
| 11 | 13A506 | Pin-type retainer |
| 12 | 13A506 | Pin-type retainer |
| 13 | 14A163 | Clip retainer |
| 14 | 14A163 | Clip retainer |
| 15 | N808023-S36M | Body ground terminal bolt |
| 16 | W520412-S | Battery junction box (BJB) terminal nut |
| 17 | - | BJB terminal (part of 14A280) |
| 18 | - | BJB electrical connector (part of 14A280) |
| 19 | - | Pin-type retainer (part of 14A280) |
| 20 | 14A280 | Battery cables |
