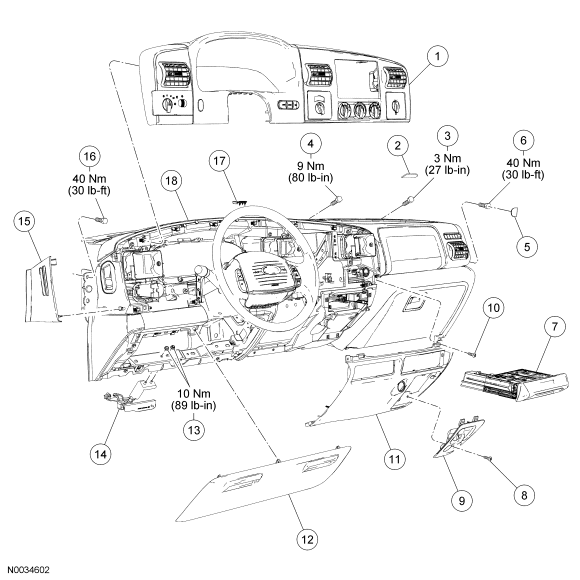

Instrument Panel - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 044D70 | Instrument panel cluster finish panel |
| 2 | 043C54 | Instrument panel opening cover |
| 3 | N807316-S36 | Instrument panel cowl top bolt |
| 4 | N807316-S36 | Instrument panel cowl top bolt (2 required) |
| 5 | 024A78 | Cowl side to instrument panel bracket cover |
| 6 | N808898-S38 | Instrument panel cowl side bolt (2 required) |
| 7 | 04810 | Ash tray receptacle |
| 8 | W707628-S424 | Bag hook screw (2 required) |
| 9 | 061B44 | Bag hook |
| 10 | W707628-S424 | Center finish panel screw (5 required) |
| 11 | 04302 | Center finish panel |
| 12 | 04459 | Instrument panel steering column opening cover |
| 13 | W502101-S309 | Parking brake nut (2 required) |
| 14 | 2783 | Parking brake handle |
| 15 | 04481 | Instrument panel finish end panel |
| 16 | N808898- S36MG | Instrument panel cowl side bolt (2 required) |
| 17 | 044F58 | Instrument panel opening cover |
| 18 | 04320 | Instrument panel |
- For additional information, refer to the procedures in this article.
