Power Steering Fluid Reservoir: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |
NOTE:

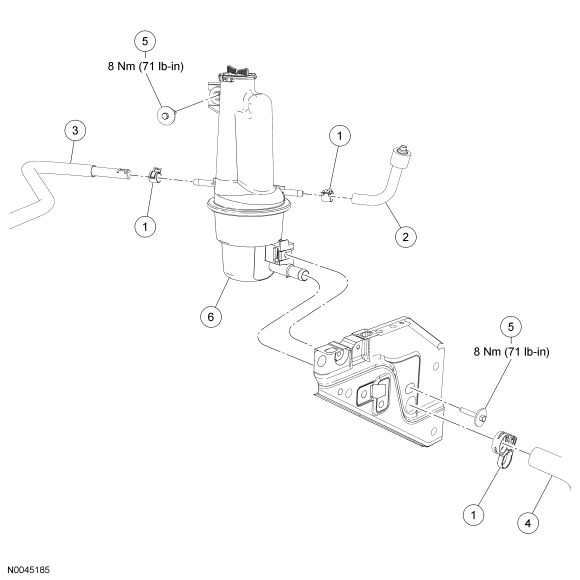

Hydro-Boost® reservoir shown, vacuum boost similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8287 | Clamps |
| 2 | 3A713 | Power steering fluid reservoir-to-hydraulic booster supply hose |
| 3 | 3A713 | Power steering fluid return hose |
| 4 | 3691 | Power steering supply hose |
| 5 | W710317 | Power steering fluid reservoir bolts (2 required) |
| 6 | 3E764 | Power steering fluid reservoir |
