Air Conditioning (A/C) Compressor: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

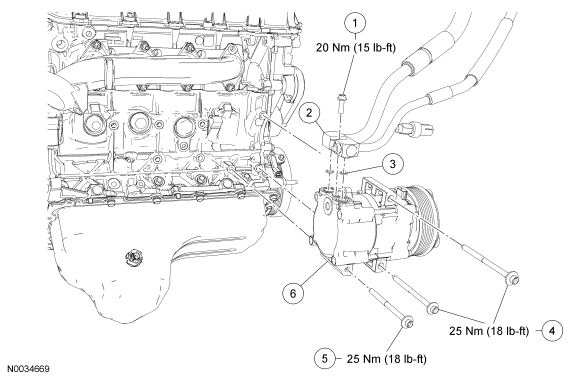

| Item | Part Number | Description |
|---|---|---|
| 1 | N805332-S58 | Compressor manifold bolt |
| 2 | 19D850 | Compressor manifold and tube assembly |
| 3 | - | O-ring |
| 4 | N806184-S | Compressor bolts (gasoline engine) (2 required) |
| 4 | W701626-S | Compressor bolts (diesel engine) (2 required) |
| 5 | N806184-S | Compressor bolt (gasoline engine) |
| 5 | W705858-S437 | Compressor bolt (diesel engine) |
| 6 | 19703 | A/C compressor |
