Bypass Tube: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Motorcraft Metal Surface Prep
ZC-31 |
- |
Silicone Gasket Remover
ZC-30 |
- |

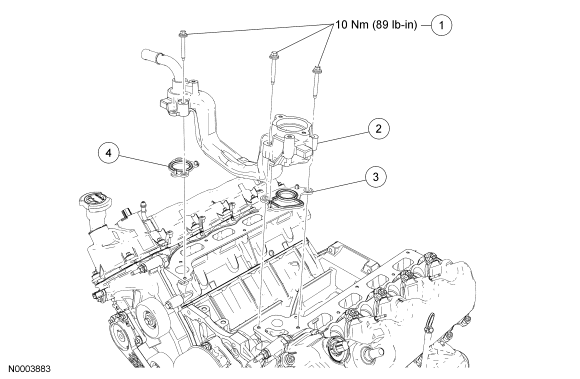

NOTE:
5.4L 3V shown, 6.8L similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W503282 |
Bypass tube bolts (3 required) |
| 2 |
8C368 |
Bypass tube |
| 3 |
8C388 |
Bypass tube gasket (LH) |
| 4 |
8C387 |
Bypass tube gasket (RH) |
