Front Disc Brake Shield: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

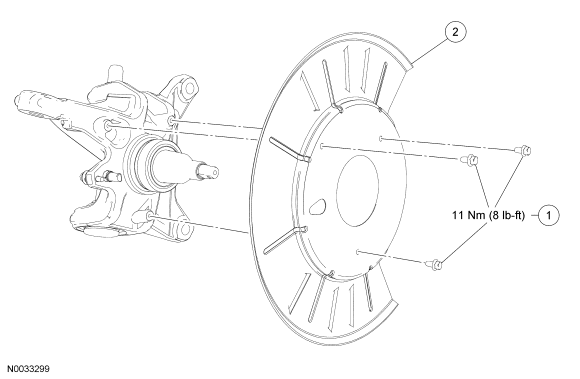

NOTE:
Rear wheel drive (RWD) vehicle shown, four wheel drive (4WD) vehicle similar.
NOTE:
Driver side shown, passenger side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N611172 |
Brake disc shield screws (3 required) |
| 2 |
2K004 LH/ 2K005 RH |
Brake disc shield |
