Suction Accumulator: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

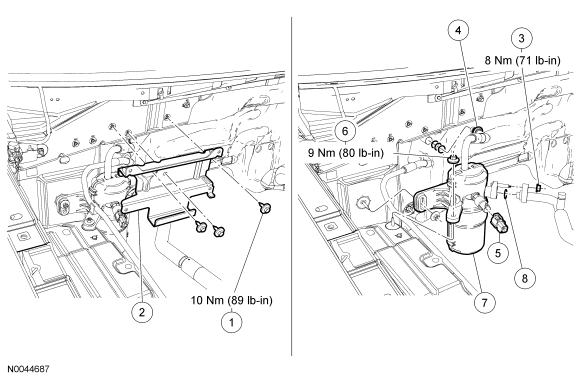

| Item | Part Number | Description |
|---|---|---|
| 1 | N802229 | PCM bracket bolt (3 required) |
| 2 | 12A659 | PCM bracket |
| 3 | W520413 | Suction accumulator outlet fitting nut |
| 4 | - | Suction accumulator inlet fitting (part of 19C836) |
| 5 | 14398 | A/C cycling switch electrical connector |
| 6 | W709450 | Suction accumulator bracket nut (2 required) |
| 7 | 19C836 | Suction accumulator |
| 8 | 19E889 | O-ring (4 required) |
