Power Steering Pump: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Installer Set, Teflon® Seal	211-D027 (D90P-3517-A) or equivalent

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

NOTE: 4.6L and 5.4L engine shown, 4.2L engine similar.

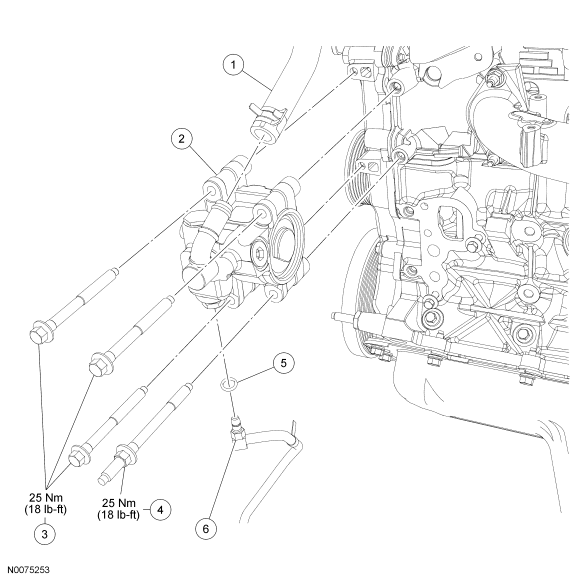

Fig 1: View Of Power Steering Pump (with Torque Specifications)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3691	Power steering pump supply hose
2	3A696	Power steering pump
3	W707225	Power steering pump bolts (3 required)
4	W705702	Power steering pump bolt (4.2L engine)
5	3E696	Teflon® seal
6	-	Pressure line-to-pump fitting (part of 3A719)
