Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Gasket Remover ZC-30	-
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

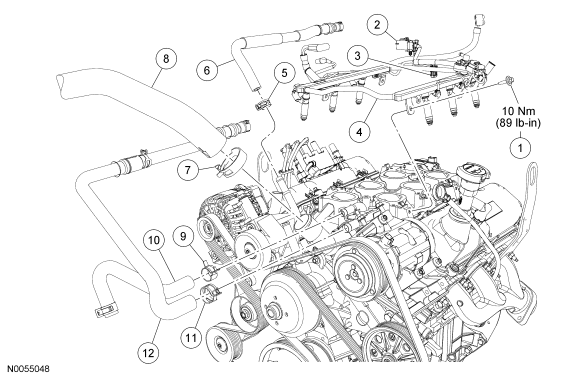

Fig 1: Identifying Lower Intake Manifold With Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708650	Fuel rail bolt (4 required)
2	14A624	Fuel charging wiring harness-to-main engine wiring harness electrical connector
3	14489	Intake manifold runner control (IMRC) actuator electrical connector
4	-	Fuel rail, fuel charging wiring harness and vacuum harness assembly
5	15161	Heater outlet hose clamp
6	18K580	Heater outlet hose
7	15161	Radiator hose clamp
8	8260	Radiator hose
9	8287	Bypass hose clamp
10	8A582	Bypass hose
11	15161	Heater inlet hose clamp
12	18K579	Heater inlet hose

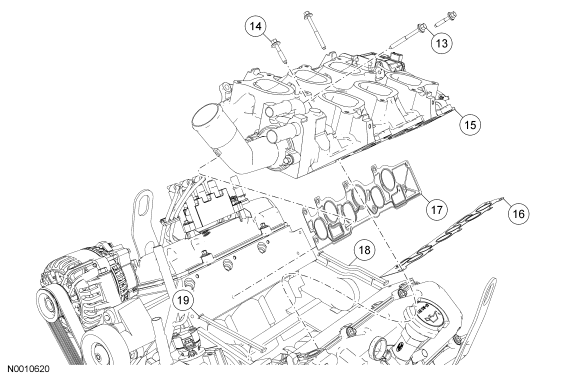

Fig 2: Identifying Lower Intake Manifold (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	W701569	Lower intake manifold long bolt (6 required)
14	W711496	Lower intake manifold short bolt (8 required)
15	9J447	Lower intake manifold
16	9441	LH lower intake manifold gasket
17	9439	RH lower intake manifold gasket
18	9A425	Lower intake manifold rear seal
19	9A424	Lower intake manifold front seal
