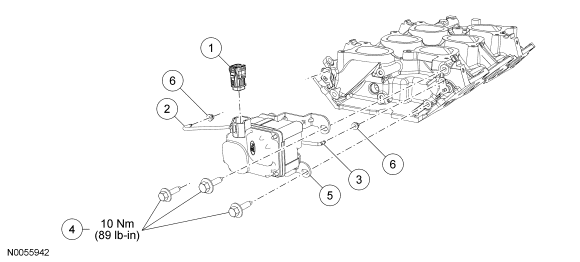

Intake Manifold Runner Control (IMRC) Actuator - 4.2L: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14489 |
Intake manifold runner control (IMRC) actuator electrical connector |
| 2 |
0069 |
LH IMRC actuator rod |
| 3 |
0068 |
RH IMRC actuator rod |
| 4 |
N806549 |
IMRC actuator bolts (3 required) |
| 5 |
9J559 |
IMRC actuator |
| 6 |
9F955 |
IMRC actuator rod retainers |
