Fuel Rail Pressure and Temperature Sensor - 4.2L: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions may result in personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Failure to follow these instructions may result in personal injury.

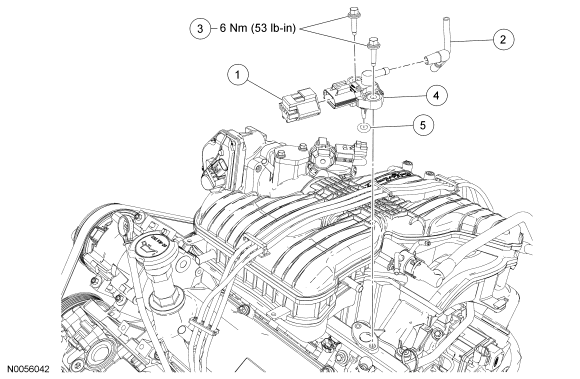

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel rail pressure and temperature sensor electrical connector |
| 2 | 9E498 | Fuel rail pressure and temperature sensor vacuum connector |
| 3 | W705870 | Fuel rail pressure and temperature sensor bolts (2 required) |
| 4 | 9G756 | Fuel rail pressure and temperature sensor |
| 5 | - | Fuel rail pressure and temperature sensor O-ring seal |
