Camshaft Position (CMP) Sensor - 4.2L: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

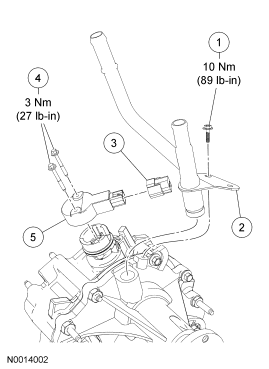

| Item | Part Number | Description |
|---|---|---|
| 1 | W708650 | Heater outlet tube bolt |
| 2 | 18674 | Heater outlet tube |
| 3 | 14A464 | Camshaft position (CMP) sensor electrical connector |
| 4 | N807720 | CMP sensor bolts (2 required) |
| 5 | 12A112 | CMP sensor |
