Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 3-Bar Engine Support | 303-F070 | |
| Support Hook | 303-F071 | |
| Support Bracket, Engine | 303-639 |
Material
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

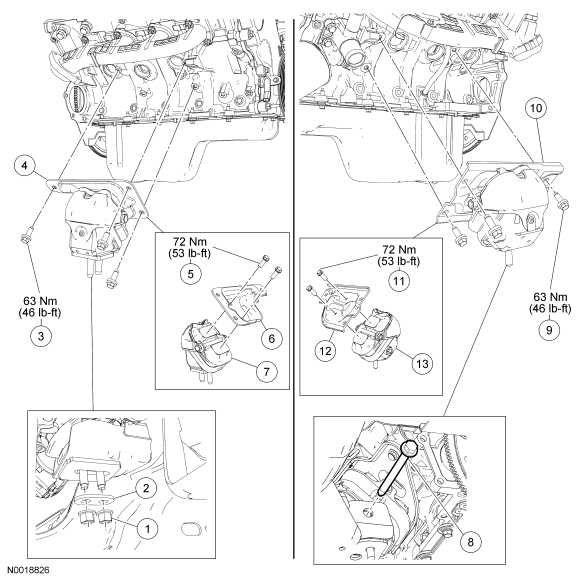

| Item | Part Number | Description |
|---|---|---|
| 1 | W710384 | RH engine support insulator nut (2 required) |
| 2 | 6D047 | RH engine insulator nut washer |
| 3 | W706698 | RH engine support insulator bracket bolt (3 required) |
| 4 | 6038 | RH engine support insulator and bracket |
| 5 | - | RH engine support insulator bracket-to-engine support insulator bolt |
| 6 | - | RH engine support insulator-to-cylinder block bracket (part of 6038) |
| 7 | - | RH engine support insulator (part of 6038) |
| 8 | W711403 | LH engine support insulator bolt |
| 9 | W706698 | LH engine support insulator bracket bolt (3 required) |
| 10 | 6B032 | LH engine support insulator and bracket |
| 11 | - | LH engine support insulator bracket-to-engine support insulator bolt |
| 12 | - | LH engine support insulator-to-cylinder block bracket (part of 6B032) |
| 13 | - | LH engine support insulator (part of 6B032) |
