Engine Lubrication Components - Exploded View

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

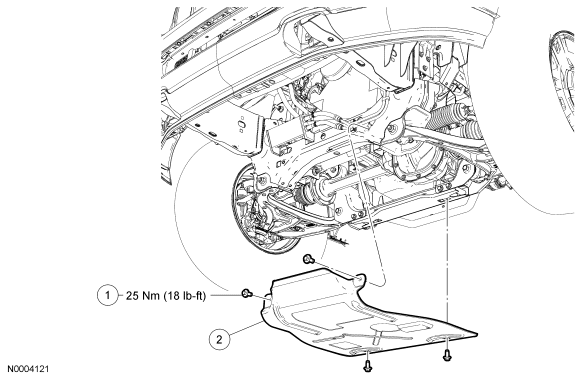

Fig 1: Exploded View Of Engine Lubrication Components (1 Of 2)
GF0002634Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707472-S Skid plate bolt (4 required) (if equipped)
2 - Skid plate (if equipped)

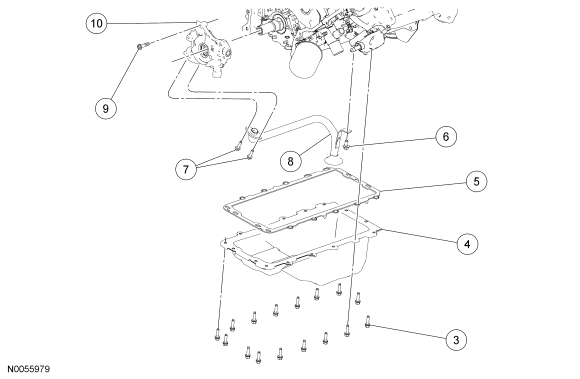

Fig 2: Exploded View Of Engine Lubrication Components (2 Of 2)
GF0002635Courtesy of FORD MOTOR CO.
Item Part Number Description
3 W701605 Oil pan bolt (16 required)
4 6675 Oil pan
5 6710 Oil pan gasket
6 N605904 Oil pump screen and pickup tube bolt
7 N806155 Oil pump screen and pickup tube bolts (2 required)
8 6622 Oil pump screen and pickup tube
9 N806183 Oil pump bolt (3 required)
10 6621 Oil pump
  1. For additional information, refer to the procedures in this article.
