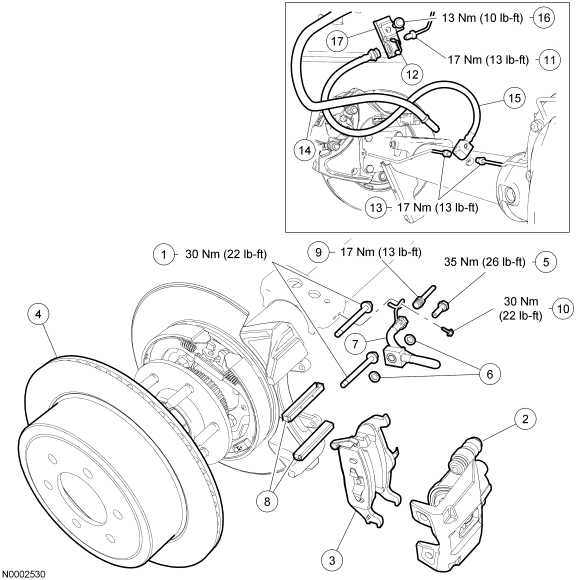

Rear Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710150 | Brake caliper guide pin bolts (2 required) |
| 2 | 2L590/2L591 | Brake caliper |
| 3 | 2200 | Brake pads |
| 4 | 2C026 | Brake disc |
| 5 | 385116 | Brake caliper flow bolt |
| 6 | 388949 | Copper washers (2 required) |
| 7 | 2267 RH/ 2268 LH | Brake hose |
| 8 | - | Slippers (2 required) (part of 2200) |
| 9 | - | Brake tube fitting (part of 100497) |
| 10 | W611633 | Brake hose bracket-to-axle bolt |
| 11 | - | Brake tube fitting (part of 2265) |
| 12 | - | Brake hose retainer clip (part of 2265) |
| 13 | - | Brake tube fittings (part of 100497) |
| 14 | 4338 | Axle vent hose |
| 15 | 25052 | Brake flexible hose |
| 16 | W506023 | Brake hose bracket-to-frame bolt |
| 17 | 63852 | Brake hose bracket |
- For additional information, refer to the procedures in this article.
