Vehicle Identification Number

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

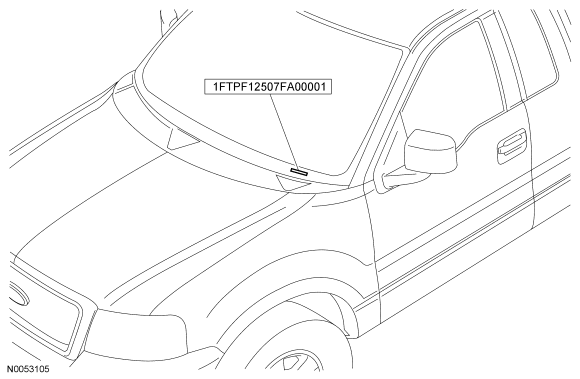

Fig 1: Locating Vehicle Identification Number (VIN) Tag

Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label.

Fig 2: Identifying VIN Breakdown

Courtesy of FORD MOTOR CO.

Item	Description
1	World manufacturer identifier
2	Brake type and gross vehicle weight rating (GVWR)
3	Vehicle line, series, body type
4	Engine type
5	Check digit
6	Model year
7	Assembly plant
8	Production sequence number

Fig 3: World Manufacturer Identifier

Courtesy of FORD MOTOR CO.

The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier.

1FD - Ford Motor Company, USA, truck (incomplete vehicle)
1FT - Ford Motor Company, USA, truck (completed vehicle)
5LT - Ford Motor Company (Lincoln), USA, truck (completed vehicle)

Fig 4: Brake Type and Gross Vehicle Weight Rating (GVWR)

Courtesy of FORD MOTOR CO.

The fourth VIN position is the vehicle brake type and gross vehicle weight rating (GVWR) code, all vehicles use hydraulic brakes. This code may also identify the vehicle safety restraint system.

R - 6,001-7,000 pounds GVWR with driver and front passenger air bags - F-150
P - 7,001-8,000 pounds GVWR with driver and front passenger air bags - F-150/Mark LT
V - 8,001-8,500 pounds GVWR with driver and front passenger air bags - F-150

Fig 5: Line, Series and Body Type

Courtesy of FORD MOTOR CO.

VIN positions 5 through 7 indicate the vehicle line, series and body type.

F02 - F-150, rear wheel drive (RWD), regular cab, 6.5 ft. flareside
F04 - F-150, four wheel drive (4WD), regular cab, 6.5 ft. flareside
F12 - F-150, RWD, regular cab, 6.5 ft. or 8 ft. styleside
F14 - F-150, 4WD, regular cab, 6.5 ft. or 8 ft. styleside
W02 - F-150, RWD, Crew Cab, 6.5 ft. flareside
W04 - F-150, 4WD, Crew Cab, 6.5 ft. flareside
W12 - F-150, RWD, Crew Cab, 5.5 ft. or 6.5 ft. styleside
W14 - F-150, 4WD, Crew Cab, 5.5 ft. or 6.5 ft. styleside
W16 - Mark LT, RWD, Crew Cab, 5.5 ft. styleside
W18 - Mark LT, 4WD, Crew Cab, 5.5 ft. styleside
X02 - F-150, RWD, SuperCab, 6.5 ft. flareside
X04 - F-150, 4WD, SuperCab, 6.5 ft. flareside
X12 - F-150, RWD, SuperCab, 8 ft. styleside, 5.5 ft. styleside or 6.5 ft. styleside
X14 - F-150, 4WD, SuperCab, 8 ft. styleside, 5.5 ft. styleside or 6.5 ft. styleside

Fig 6: Engine Type

Courtesy of FORD MOTOR CO.

The eighth VIN position is the engine type (displacement and number of cylinders).

2 - 4.2L, OHV, V6, EFI - F-150
5 - 5.4L, 3-valve, SOHC, V8, EFI - F-150/Mark LT
W - 4.6L, SOHC, V8, EFI - F-150
V - 5.4L, 3-valve, SOHC, V8, EFI, Flex-fuel - F-150

Fig 7: Check Digit

Courtesy of FORD MOTOR CO.

The ninth VIN position is a government-assigned, computer-generated check digit.

Fig 8: Model Year

Courtesy of FORD MOTOR CO.

The tenth VIN position is the model year code.

7 - 2007

Fig 9: Assembly Plant

Courtesy of FORD MOTOR CO.

The eleventh VIN position is the assembly plant code.

F - Dearborn - Dearborn, Michigan, USA - F-150/Mark LT
K - Kansas City - Claycomo, Missouri, USA - F-150
N - Norfolk - Norfolk, Virginia, USA - F-150

Fig 10: Build Sequence

Courtesy of FORD MOTOR CO.

VIN positions 12 through 17 are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block, transmission and frame.

A00001-F99999 - F-150
J00001-L99999 - Mark LT
