Front End Body Panels - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

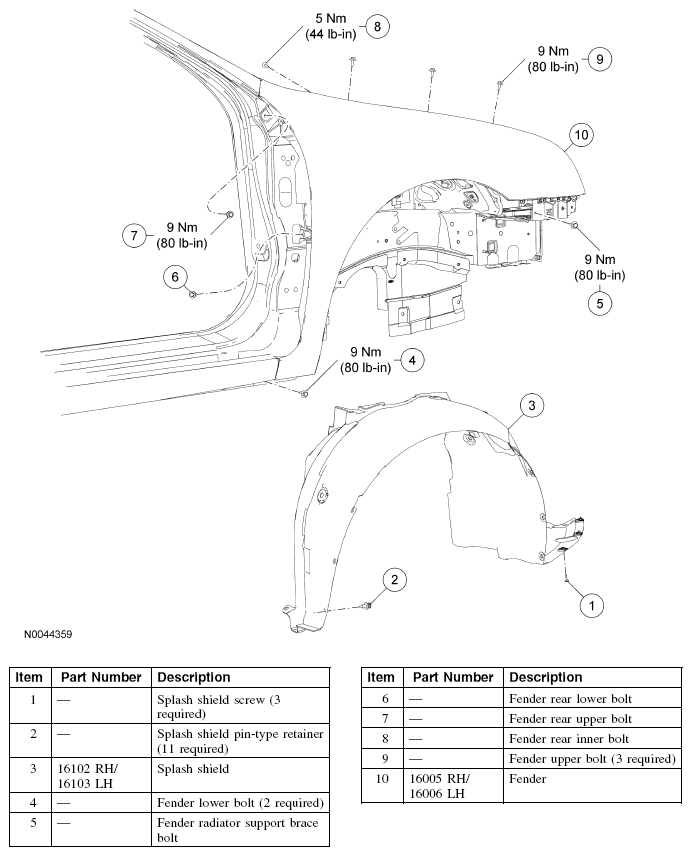

Fig 1: Exploded View Of Front End Body Panels With Torque Specifications
G04683047Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
