Transmission Support CROSSMEMBER: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the crossmember to the transmission mount and loosely install the nut.
    Fig 1: Locating Crossmember To Transmission Mount
    G03889185Courtesy of FORD MOTOR CO.
  2. Install the LH crossmember bolts.
    Fig 2: Installing LH Crossmember Bolts
    G03923154Courtesy of FORD MOTOR CO.
  3. Install the RH crossmember bolts.
    Fig 3: Installing RH Crossmember Bolts
    G03922786Courtesy of FORD MOTOR CO.
  4. Install the bracket and loosely install the bolts.
    1. Install the bracket.
    2. Loosely install the bolts.

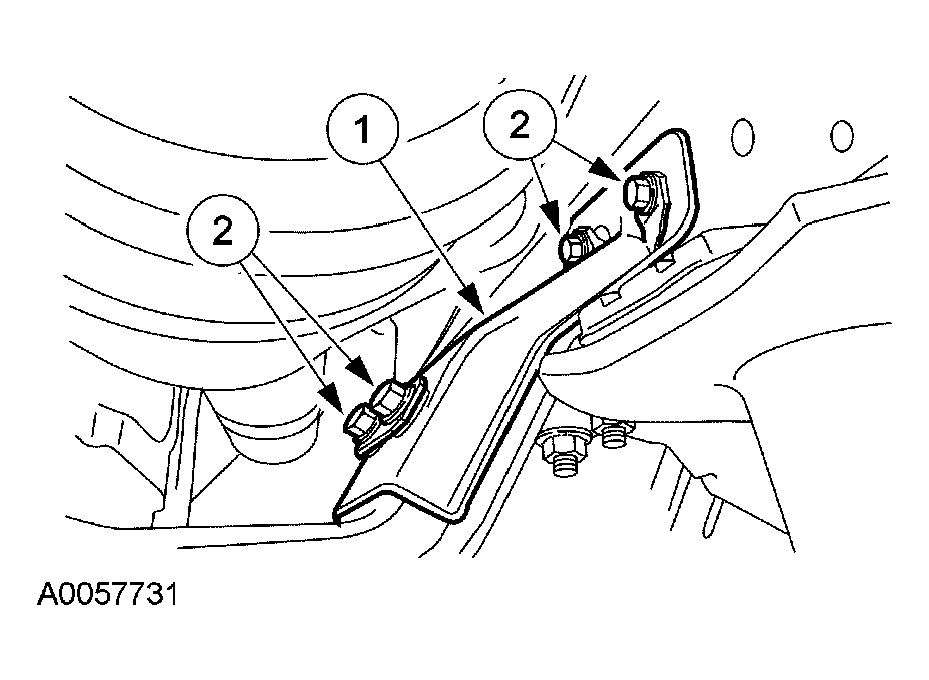

      Fig 4: Installing Bracket And Bolts
      G03922662Courtesy of FORD MOTOR CO.
  5. Tighten the RH crossmember bolts.
    Fig 5: Tightening RH Crossmember Bolts
    G03922663Courtesy of FORD MOTOR CO.
  6. Tighten the rear insulator nuts.
    Fig 6: Rear Transmission Mount Insulator Nuts - With Torque Specification
    G03889190Courtesy of FORD MOTOR CO.
  7. Connect the wire harness to the rear of the crossmember.
    Fig 7: Locating Wire Harness At Rear Of Crossmember
    G03908863Courtesy of FORD MOTOR CO.
