Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2	ESE-M12A4-A

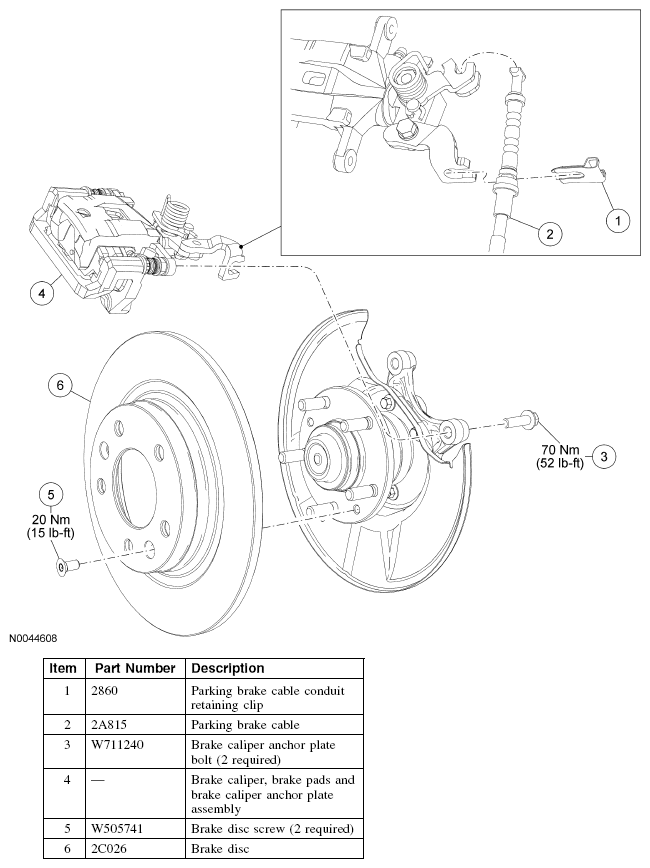

Fig 1: Identifying Brake Disc Components

Courtesy of FORD MOTOR CO.
