Catalytic Converter - 2.3L Manifold: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 7 new catalytic converter manifold studs.
    • Tighten to 17 Nm (13 lb-ft).
  2. Position a new catalytic converter manifold gasket on the studs.
  3. CAUTION: Failure to tighten the catalytic converter manifold nuts to specification before installing the converter bracket bolts will cause the converter to develop an exhaust leak.
    CAUTION: Failure to tighten the catalytic converter manifold nuts to specification a second time will cause the converter to develop an exhaust leak.
    NOTE: Make sure to tighten the nuts in the sequence shown in 2 stages.
  4. Position the catalytic converter manifold and tighten the 7 new nuts in the sequence shown, in 2 stages.
    • Stage 1: Tighten to 55 Nm (41 lb-ft).
    • Stage 2: Tighten to 55 Nm (41 lb-ft).

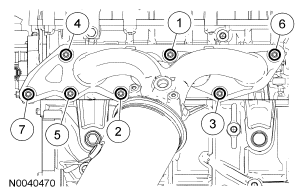

      Fig 1: Identifying Catalytic Converter Manifold Nuts Tightening Sequence
      G04682372Courtesy of FORD MOTOR CO.
  5. Install the 2 catalytic converter manifold shield bracket bolts and the bracket.
    • Tighten to 20 Nm (15 lb-ft).
  6. Tighten the 2 catalytic converter manifold bracket bolts.
    • Tighten to 20 Nm (15 lb-ft).
  7. Position the heat shield and install the 6 heat shield bolts.
    • Tighten to 10 Nm (89 lb-in).
  8. Install the 2 catalytic converter manifold-to-exhaust flexible pipe nuts.
    • Install a new gasket.
    • Tighten to 40 Nm (30 lb-ft).
  9. Position the wiring harness bracket on the stud.
  10. Install the heated oxygen sensor (HO2S) and catalyst monitor sensors (CMS). For additional information, refer to ELECTRONIC ENGINE CONTROLS - 2.3L .
  11. Install the generator air inlet duct.

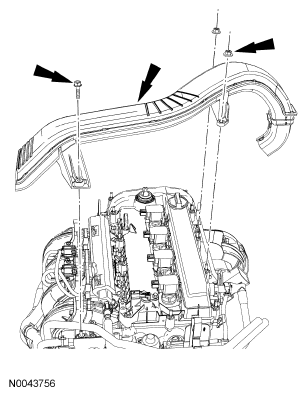

    Fig 2: Locating Generator Air Inlet Duct And Bolts
    G04682373Courtesy of FORD MOTOR CO.
