Subframe Bushings - Front: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

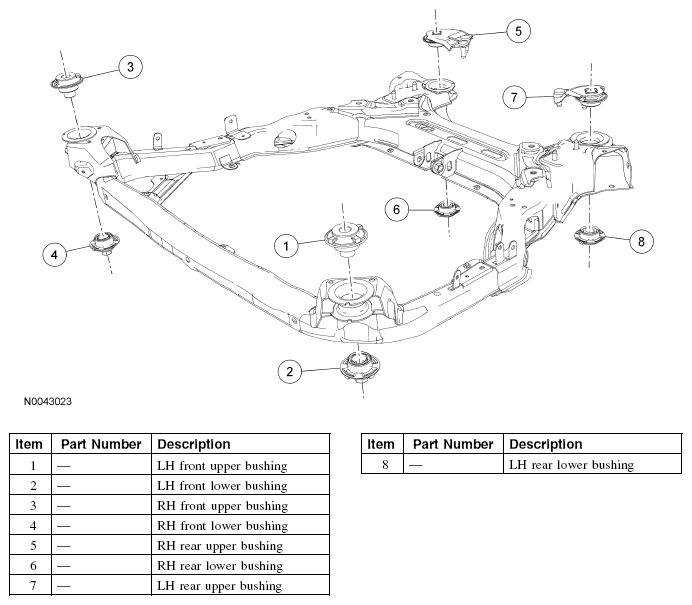

Fig 1: Identifying Subframe Bushings Remove/Install Components - Front

Courtesy of FORD MOTOR CO.

All bushings

Remove the front subframe. For additional information, refer to SUBFRAME - FRONT .

Front bushings

CAUTION: Damage to the subframe may occur if a screwdriver is used to remove the front bushings or if the correct tools are not used.

Fig 2: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Assemble the special tools to the groove between the upper and lower bushings and tighten.
Remove the lower bushing using a hammer.
Turn the subframe over.
Assemble the special tools to the upper bushing.

Fig 3: Identifying Special Tools For Upper Bushing
Courtesy of FORD MOTOR CO.
Remove the upper bushing using a hammer.

Rear bushings

Remove the 4 nuts and crossmember from the front subframe.

Fig 4: Locating Crossmember Nuts
Courtesy of FORD MOTOR CO.
Mark the orientation of the bushings to the subframe.

Fig 5: Locating Mark On Subframe Bushings
Courtesy of FORD MOTOR CO.
Remove the lower rear bushings using a flat-blade screwdriver, being careful not to damage the subframe.

Fig 6: Removing Lower Rear Bushings
Courtesy of FORD MOTOR CO.
Turn the subframe over.
Remove the upper rear bushings using a flat-blade screwdriver, being careful not to damage the subframe.
