Front End Body Panels - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

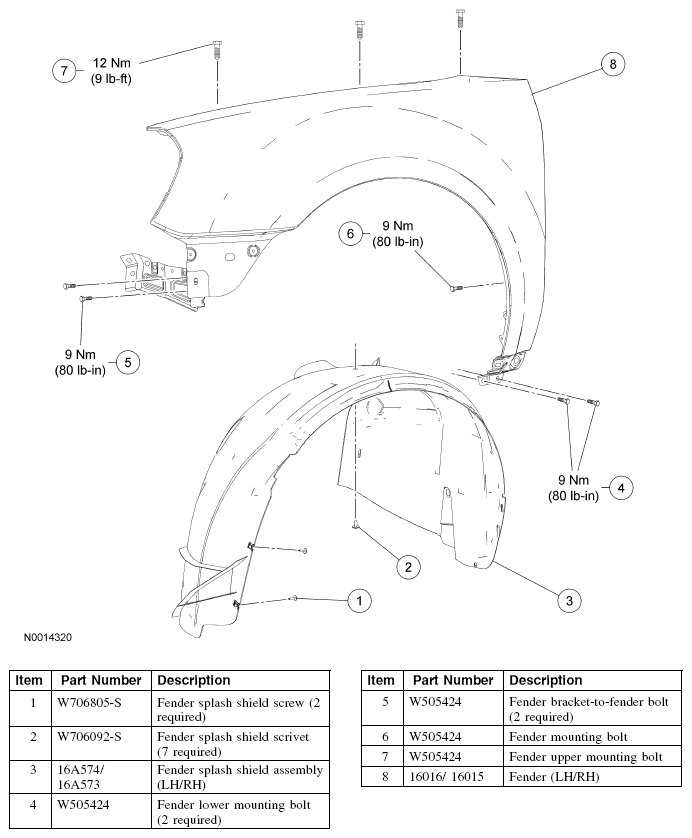

Fig 1: Exploded View Of Front End Body Panels - Five Hundred, Montego With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: RH shown, LH similar

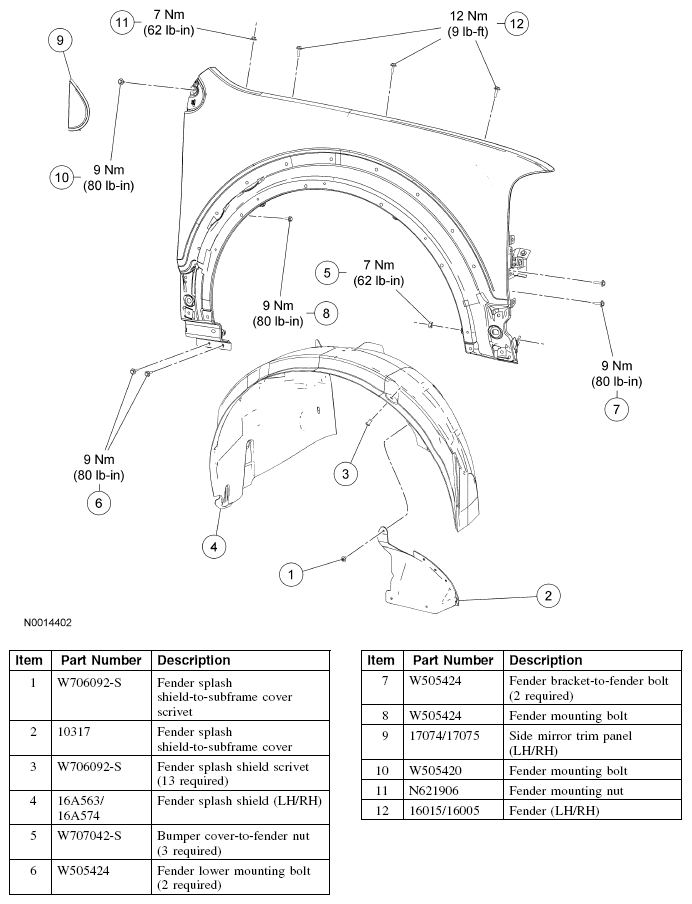

Fig 2: Exploded View Of Front End Body Panels - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
