Subframe - Rear: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

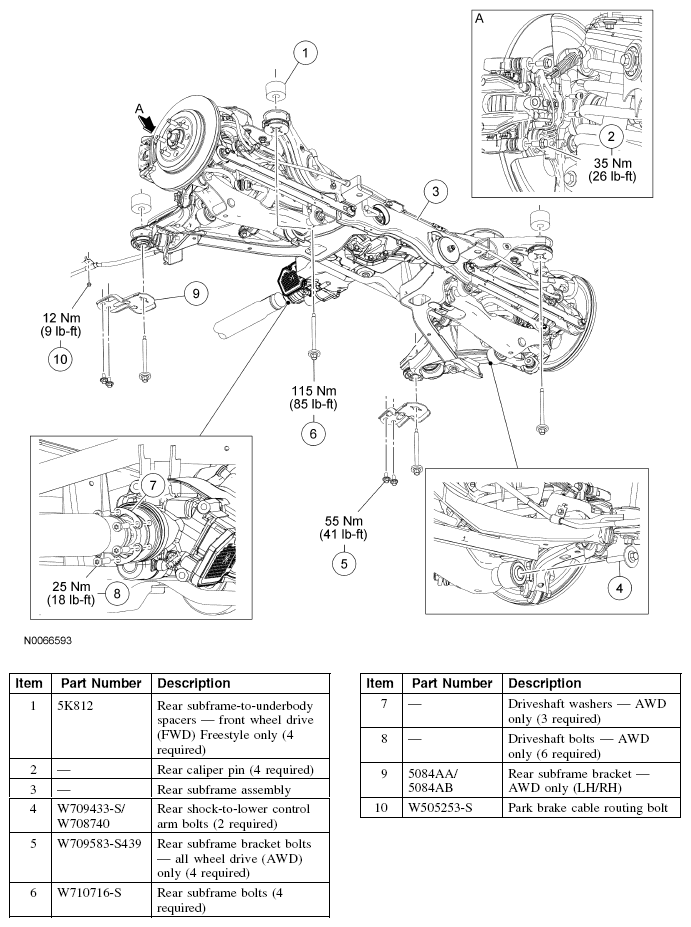

Fig 1: Subframe -- Rear Replacement Components With Torque Specifications
G04659828Courtesy of FORD MOTOR CO.
