Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Set the mode select switch to the 4WD HIGH position.
Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Disconnect the gearmotor encoder assembly harness connectors.

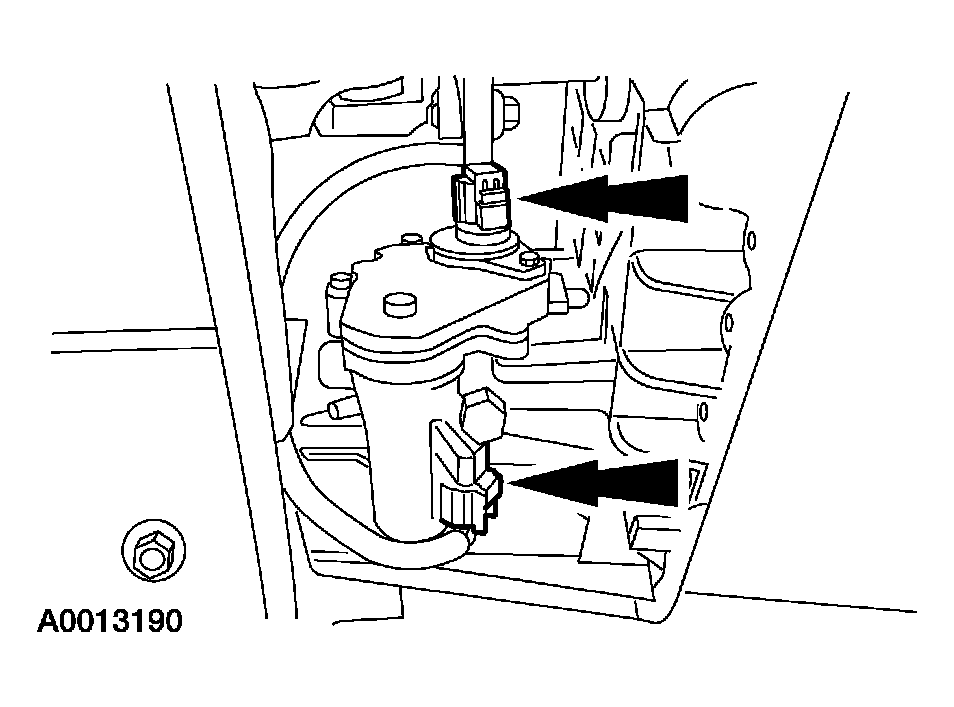

Fig 1: Disconnecting Gearmotor Encoder Assembly Harness Connectors
Courtesy of FORD MOTOR CO.
Remove the three bolts and the gearmotor encoder assembly.

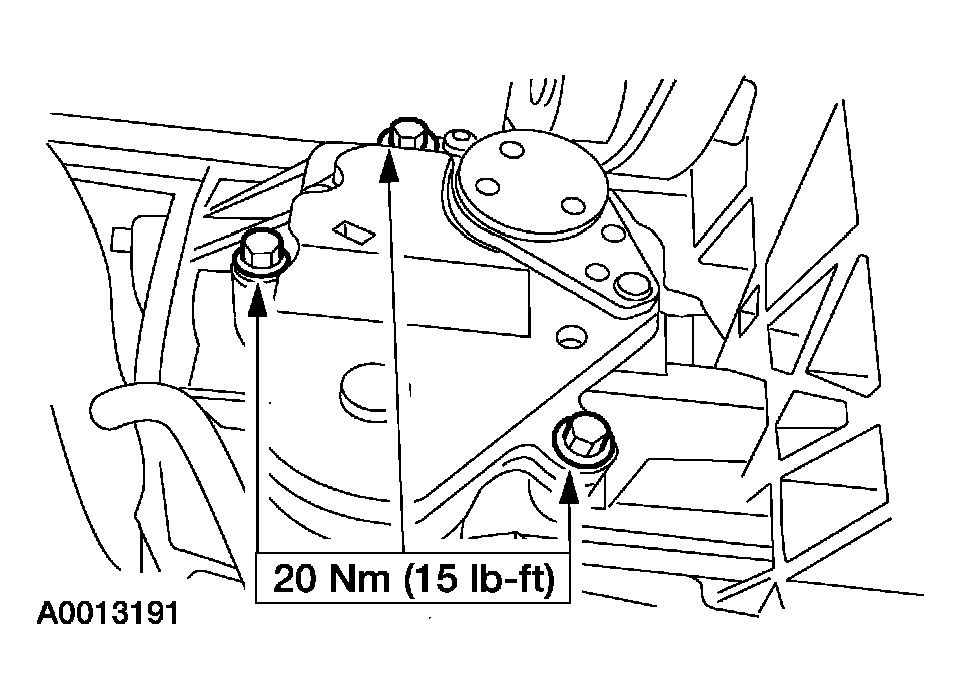

Fig 2: Removing/Installing Gearmotor Encoder Assembly Bolts
Courtesy of FORD MOTOR CO.
Remove the grease from the motor adapter and check for any nicks or burrs. If any damage is found, repair or install a new adapter as necessary.
To install, reverse the removal procedure.
- Apply a coat of grease to the new motor adapter.
